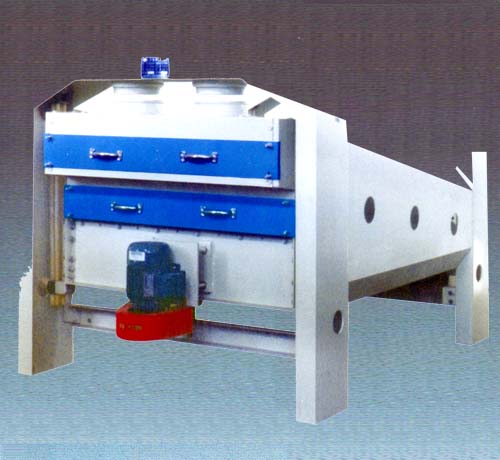

平 面 回 转 筛

   TQLM系列平面回转筛主要用于制粉、饲料、碾米、化工、榨油等行业的原料清理或分级,并可根据不同物料选择不同筛板,从而达到理想的分级效果,该机具有运转平稳、噪音低、自带吸风、卫生条件好等优点。
  Plain Rotatory Sieves in series Model TQLM are used to separate and select in flourmills, feed mills, oil mills, corn mills and chemical. They select different sifting plates basing on different materials, which result ideal separating effect. They offer advantages such as smooth operation low noise, ideal cleaning effects.

主要技术参数:
项目items|型号model TQLM63 TQLM100 TQLM125
产量(t/h)output 3.5 6-9 7.5-10
配备动力(kW)power 0.75 0.75 1.1
转速(rpm)rotational speed 386 386 386
吸风量(m^3/h)process air's volme 1090 1190 1290
筛体回转半径(mm)sieve rotatory radius 6-7.5 6-7.5 6-7.5
质量(kg)weight 600 630 800
外形尺寸(长*宽*高)mm overal dimension 1876*975*1322 1945*1370*1322 1945*1600*1322
