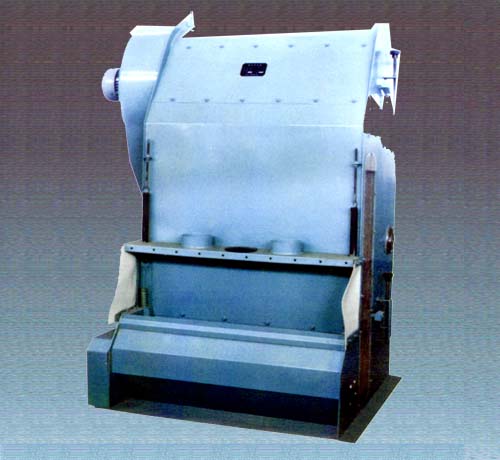

循 环 风 选 器

   TFXH系列循环风选取器主要用于粮食储藏、面粉、饮料加工、医药、油脂、食品、酿造等行业的颗粒物料清理。该机可将谷物中低密度杂质与颗粒物质(如小麦、大麦、稻谷、油料、玉米等)分离。该机采用闭路循环风的形式,本身具有除尘降尘的功能。不但节省了其它除尘设备,而且不与外界进行气体交换,因而,可以避免能量的损失,不污染环境。
   Selt-circle Aspirators in series Model TFXH are used to grain reserve and granule materials clearing in flourmills,feed mills,medicine,oil mills, food and brew. They separate low-density materials from granule materials(e.g.wheat,barley,corn,oil-bearing crops,maize). They adopt self-cirle enclose unit and has the function of removing dust.They offer advantages such as low energy consumption and no pollution.

主要技术参数:
项目items|型号model TFXH100 TFXH150
产量output(吨/日) 初清 pretreat settle 60 90
净清 settke 16 24
配备动力(kW)power 1.5  1.1 2*2.2 1.1
空气需要 m^3/min air's volume 初清 pretreat settle 6 8
净清 settke 10 12
外形尺寸(长*宽*高)mm overal dimension 1575*1046*2255 2498*1046*2255
